Product Description
Introduction:
Feed pellet production line is specially deigned for scale feed pellet production, which can meet the requirement of daily farm use, livestock feed factory, poultry feed factory, even the large scale animal feed production factory.
Generally, feed pellet production processing consists of mixing, drying, crushing, pelletizing, cooling, packing and related conveying equipment.
Complete of poultry animal feed pellet line:
Raw Material - Hammer Mill - Feed Mixer - Screw Conveyor - Feed Pellet Mill - Pellet Cooler - Packing Machine
1) 500KG/H Feed Pellet Production Line:
Raw Material - Hammer Mill - Feed Mixer - Feed Pellet Mill - Pellet Cooler - Controller
| Technical Parameters of poultry feed production line | ||||
| Machine Name | Model | Power | Capacity | Q'ty |
| Hammer Mill | 9FQ-420 | 7.5KW | 500 kg/h | 1 |
| Feed Mixer | FH-500 | 3KW | 500 kg/h | 1 |
| Screw conveyor | LS-200 | 1.5KW | 500 kg/h | 1 |
| Feed Pellet Mill | PM-300B | 22KW | 500 kg/h | 1 |
| Controller | BK-1 | / | / | 1 |
2) 1000kg/h feed pellet plant:
Raw Material - Hammer Mill - Feed Mixer -Screw Conveyor - Feed Pellet Mill - Pellet Cooler - Bucket Elevator - Packing Machine - Electric Cabinet
| Technical Parameters of 1000kg/h Feed Pellet Line | |||
| NO. | PRODUCT NAME | MODEL | POWER |
| 1 | Hammer Crusher with airlock | 9FQ 500-40 | 22+0.75 KW |
| 2 | Horizontal Mixer | WS-1000 | 5.5 KW*2 |
| 3 | Screw Conveyor | LS-160 (5m) | 4 KW |
| 4 | Feed Pellet Mill | PM-400B | 30 KW |
| 5 | Storage Bin with screw feeder | 1.5m³ | 0.75 KW |
| 6 | Horizontal Cooler With dust collector | LQJ-70 | 5.15 KW |
| 7 | Belt conveyor | QB-380 | 2.2KW |
| 8 | Packing Machine | DCS-50A | 2.24 KW |
| 9 | Controller | BK-1 | 380V/50hz/Three Phases |
| Note: The No.6/7/8 are optional, and the process can be adjusted according to customers' needs | |||
Crushing various kinds of pellet raw material such us corn, sorghum, wheat, bean, etc into powder.

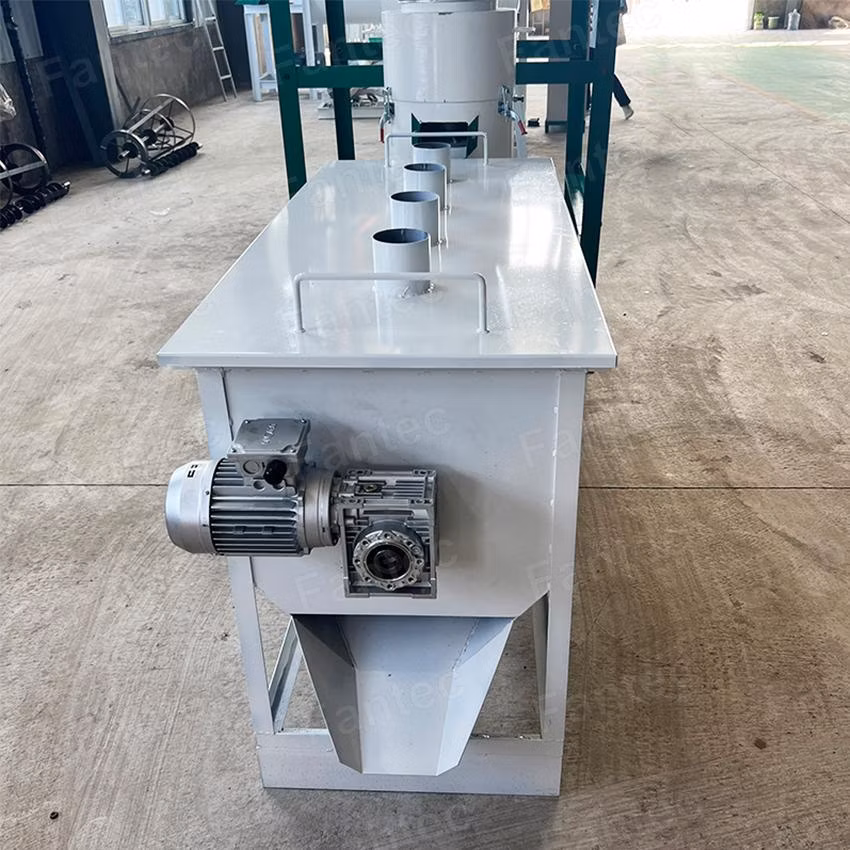

Mix several different materials thoroughly,prepare for the feed pellet mill.
Making mixed powder feed into different size feed pellets for different animals.The feed pellet mill can be equipped with different diameter flat dies to produce different size feed pellets.
Cooling hot feed pellets and screen dust out of pellet to keep pellet clean,for long time storage.
Various raw materials can be made into feed pellet for animals, including grasses, alfalfa, potato, corn, wheat, maize, pasture, rice, rice husk, rice bran, straw meal etc, you can add some other necessary vitamins agent for your animals.Feed pellet production line can make nutritional animal feed for various animals, such as, cattle, sheep, rabbit, chicken, horse, geese, pig, fish etc, avoiding them becoming picky.
The finished feed pellet, with high density and uniform size, is easy to transport and store.
Produced in the sealed and high-temperature pelletizing chamber, the finished feed pellet is easy to absorb for the animals.
