Product Description
2) Available in three, four, or six tiers with an H-frame design, this system maximizes land use efficiency. Measuring 4.8 meters in length, it ensures ample height and space for birds' activities.
3) Experience the convenience of fully automated feeding, watering, egg collection, and ventilation systems, significantly reducing labor costs.
4) The drinking line's height is easily adjustable to accommodate the growing chickens, ensuring ideal hydration at every stage.
5) Natural mating within the cage minimizes stress, boosting egg production and fertilization rates. The egg-saving wire prevents eggs from cracking by controlling their roll-out effectively.
Detailed Specifications for a 3-Tier Breeder Poultry Cage System
| Data of Details for a 3 tiers breeder poultry cage | Size and data |
| Height/Width of 3 tier cage(feed trolley not included)(mm) | 2905/1586 |
| Distance of support legs(mm) | 1206 |
| Length of Cell cage(mm) | 4824/1226 |
| Max./Min. height of cell cage(mm) | 720/640 |
| Height of tier(mm) | 840 |
| Angle of tier(mm) | 7° |
| Qty of female(pc) | 81 |
| Qty of male(pc) | 9 |
| Living area per bird(sq.cm/bird) | 730 |

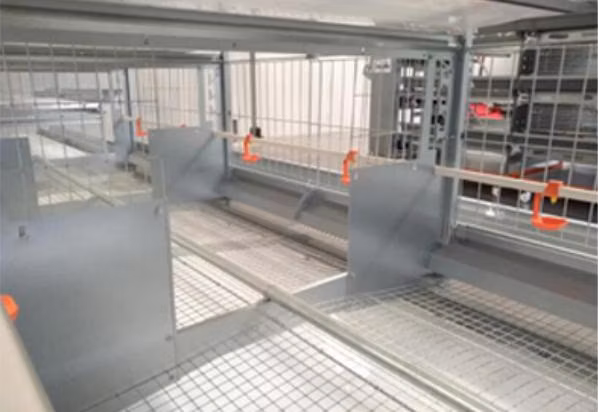

1) These cages offer increased bearing capacity and ample breeding space. The C-shaped legs, crafted from hot-dip galvanized sheets, are not only exceptionally sturdy but also remarkably easy to maintain.
2) The bottom mesh of the cages is constructed from galvanized aluminum wire, celebrated for its high tensile strength and outstanding elasticity. This characteristic significantly alleviates chicken fatigue.
Compared to traditional hot-dip processes, this advanced method significantly boosts rust resistance and enhances the smoothness of the cage surface, ensuring no scratches harm the chickens.
3) The sliding door with an integrated lock mechanism provides easy access while ensuring no layers can escape and the feed remains securely in the trough during mealtime.
4) The cage bottom incorporates galvanized aluminum wire, acclaimed for its high intensity and elasticity. Its smooth surface is instrumental in minimizing egg breakage.
5) The cage bottom is designed with a 7° angle, optimizing the rolling angle to significantly reduce egg breakage rates.
6) Centrally installed along the longitudinal axis of each tier, square drinking pipes maximize space efficiency and supply water to layers on both sides, each side equipped with two nipple drinkers.
A strategically placed V-shaped trough below the drinking pipe effectively prevents water from dripping onto the manure belt, maintaining cleanliness.
7) The feeding system employs feed trolleys with a robust driving mechanism, supported by a strong cage frame and fortified guide rails. Each trolley is fitted with two sets of guide wheels.
Smooth rails and feed troughs ensure the guide wheels operate silently, distributing feed evenly and efficiently.
Explore the Completeness of Automatic Equipment Systems by Qingdao Famou Machinery Co., Ltd.: Experience unmatched efficiency and innovation with our comprehensive solutions designed to enhance your layer hen farming operations.
1) State-of-the-Art Cage and Frame: Engineered for durability and optimized space utilization.
2) Fully Automatic Drinking System: Ensuring consistent and hygienic water supply.
3) Fully Automatic Feeding System: Precision feeding to maximize productivity and health.
4) Fully Automatic Egg Collection System: Seamlessly collect eggs with minimal labor.
5) Fully Automatic Manure Removing System: Maintain cleanliness and hygiene effortlessly.
6) Fully Automatic Lighting System: Enhance egg production with optimal lighting conditions.
7) Fully Automatic Environment and Electric Controller System: Advanced control for a stable and productive farming environment.
Q: Are you a trading company or a manufacturer?
A: We are a factory. At Qingdao Famou Machinery Co., Ltd., we pride ourselves on manufacturing top-notch solutions.
Q: What are your terms of payment?
A: For payments up to 5000 USD, we require 100% in advance. For payments exceeding 5000 USD, we accept a 30% T/T advance with the remaining balance due before shipping.
Q: What is your delivery time?
A: Generally, our delivery time ranges from 20 to 40 days, subject to the order quantity and specific requirements.
Q: Do you provide samples?
A: Absolutely! We are pleased to offer samples to help you evaluate our premium Automatic Poultry Cage System with Customized Steel Design for Layer Hen Farming.
